01

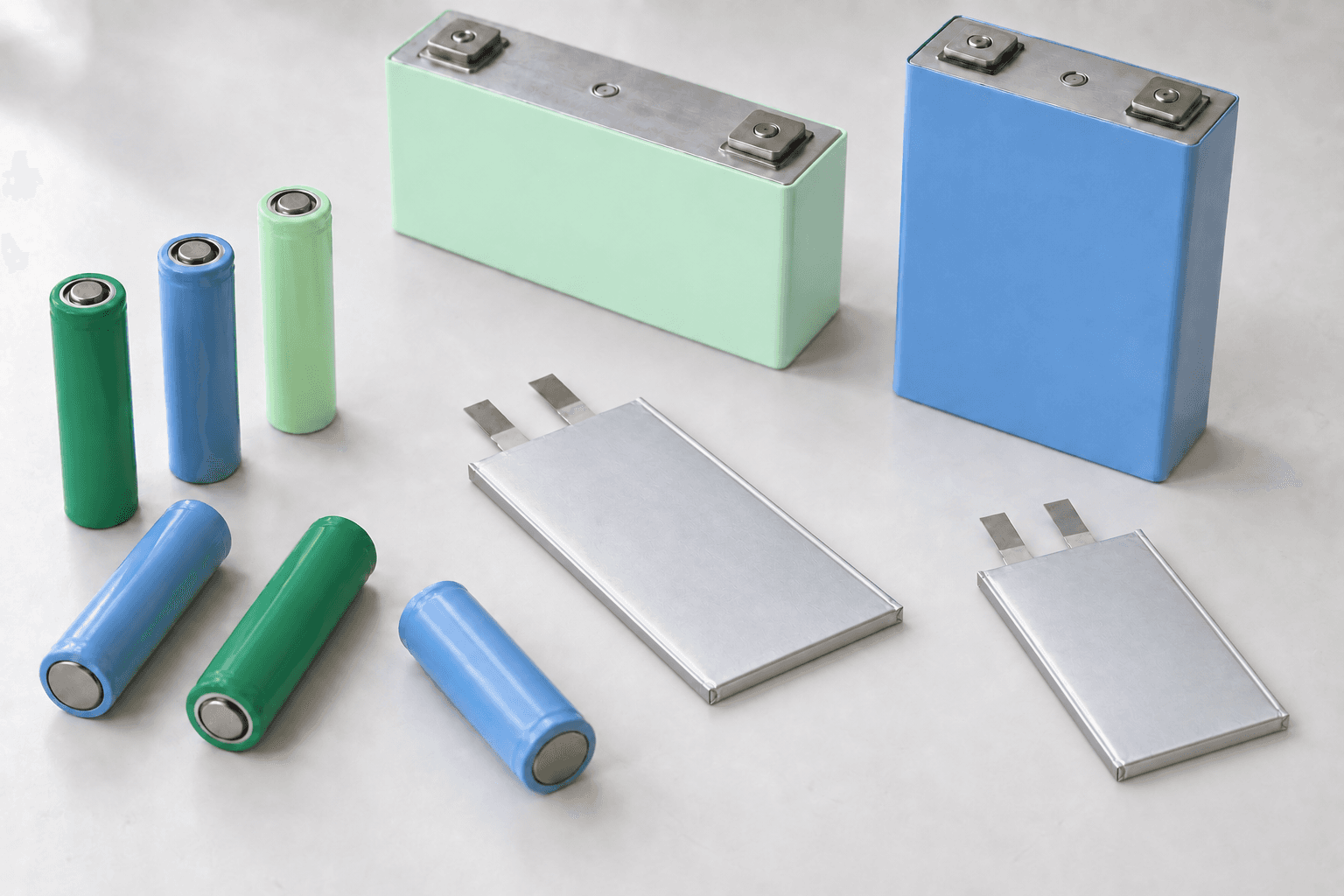

Cylindrical cells
NFPP18650-900mAh
CFM18650-1300mAh
Specs
Specification
CFM18650
NFPP18650
Nominal voltage
3.0 V
3.0 V
Nominal capacity
1.3 Ah at 0.2C, 25°C
0.9 Ah at 0.2C, 25°C
Charge voltage cut-off
4.0 V
3.7 V
Discharge voltage cut-off
1.5 V
1.5 V
Internal resistance
≤ 20 mΩ, 1 kHz AC, 25°C
≤ 20 mΩ, 1 kHz AC, 25°C
Cell diameter
18.4 ± 0.2 mm
18.4 ± 0.2 mm
Cell height
65.4 ± 0.3 mm
65.5 ± 0.3 mm
Weight
37 ± 2 g
33 ± 2 g
Standard charge current
0.2C (0.26 A)
0.5C (0.45 A)
Max. continuous charge current
0.5C (0.65 A)
3C (2.7 A)
Standard discharge current
0.2C (0.26 A)
0.5C (0.45 A)
Max. continuous discharge current
5C (6.5 A)
20C (18 A)
02
Prismatic cells
ION511-50Ah
ION712-160Ah
Specs
Specification
ION511-50
ION712-160
Nominal voltage
2.9 V
3.0 V
Nominal capacity
50 Ah at 0.5C, 25°C
160 Ah at 0.5C, 25°C
Charge voltage cut-off
3.45 V
3.45 V
Discharge voltage cut-off
1.5 V
1.5 V
Internal resistance
≤ 0.5 mΩ, 1 kHz AC, 25°C
≤ 0.3 mΩ, 1 kHz AC, 25°C
Cell dimensions
50 × 160 × 119 mm
72 × 174 × 207 mm
Weight
Approx. 1.8 kg
Approx. 4.3 kg
Standard charge current
0.5C (25 A)
0.5C (80 A)
Max. continuous charge current
1C (50 A)
1C (160 A)
Standard discharge current
0.5C (25 A)
0.5C (80 A)
Max. continuous discharge current
8C (400 A)
4C (640 A)
03
Battery pack
IONERAS-SIB48150A
Specs
Specification
IONERAS-SIB48150A
Chemistry
Sodium-ion, NFPP / Hard Carbon
Nominal voltage
48 V
Rated capacity
150 Ah
Nominal energy
7.2 kWh
Dimensions (W × D × H)
442 × 650 × 220 mm
Weight
80 ± 2 kg
Cycle life
≥ 8,000 cycles
Cycle-life condition
25°C, 0.5C / 0.5C, 80% DoD
Cooling
Natural cooling*
Communication
CAN / RS485*
Installation
Cabinet / system integration
Application
Telecom backup / stationary energy storage
FAQ
Common questions.
Which sodium-ion chemistry and cell format should I choose?
We offer sodium-ion cells and battery solutions for different energy, power and operating requirements. Cell chemistry and format should be selected according to the required capacity, discharge rate, temperature range, cycle life and system design.
Will the battery fit my existing rack or cabinet?
Pack dimensions are provided for each model, but final installation also depends on usable rack depth, available RU space, mounting arrangement, cable clearance and cabinet load capacity. We recommend checking the actual enclosure before installation.
How do your sodium-ion batteries perform at low temperature and high discharge rates?
Performance depends on the cell chemistry and product design. We specify charge and discharge limits under defined operating conditions rather than applying one value to every product. Detailed test data can be provided for the selected cell or battery pack.
Can I order samples or request a custom battery solution?
Sample availability depends on the cell type and quantity required. For applications requiring a different cell format, battery configuration, BMS, enclosure or operating profile, we can evaluate the requirement through our Development service.
